One-phase cut core choke 400 Hz, 50 mH


Datasheet as PDF
One-phase cut core choke 400 Hz, 50 mH

cesymb_harmonicsclass_Henergysymb-RoHs

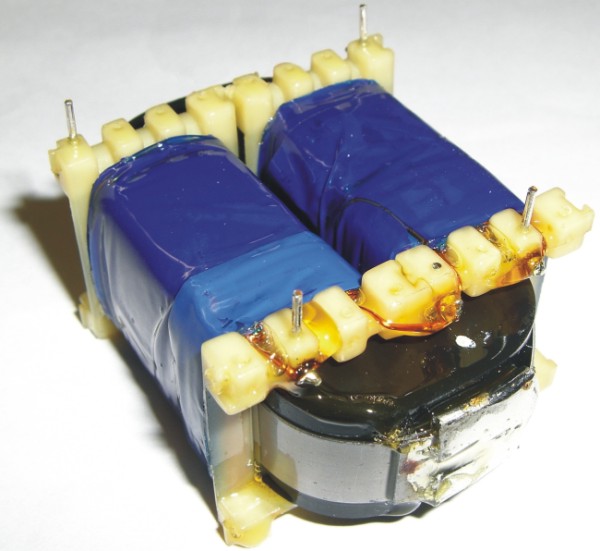

One-phase cut core choke

BV 15040001


Customer’s demand


For our 400 Hz plane on-board power supply we look for a choke as small and as light as possible. At 50% higher currents, the choke should still maintain its inductance.


Solution


We choose a cut core choke to keep losses and weight low. By adjusting the air gap we can reach the demanded inductance-current stability.


Technical data


Inductance: 50 mH
Current: 1 A
Frequency: 400 Hz
