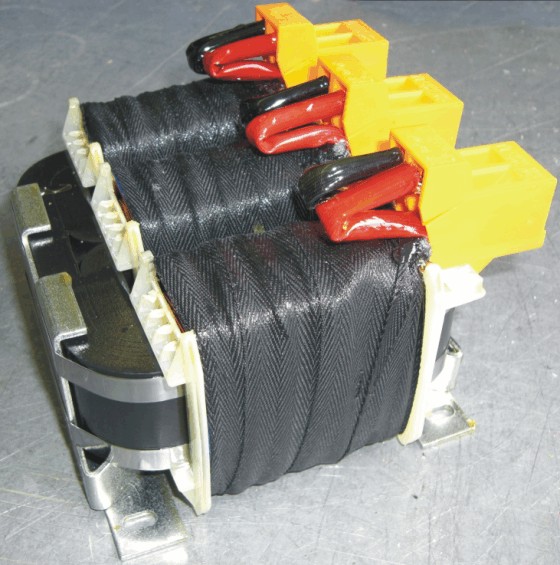

Split tape-wound core choke 3 x 2 mH 10 A


Datasheet as PDF
Three-phase split tape wound core filter choke to filter a multiple of 4 kHz, 3 x 2 mH, 10 A

cesymb_harmonicsclass_Henergysymb-RoHs


C-core choke


Fields of application


Filtering of harmonic waves and frequency inverters


Technical data


C-core choke conform to EN 61558-20
Frequency: Basic frequency 50 Hz
Harmonics: multiples of 4 kHz
Inductance: L = 2 mH
Current: I = 4 A
Core: S3U 75/41,5
Core material: tape 0,3 mm thick
Winding: fine wiry high-frequency litz
Weight: 6 kg
Good EMC ratio
High thermal stability
Temperature class B
max. ambient temperature40 °C
Fire class UL94 V0
Prepared for protection index I
