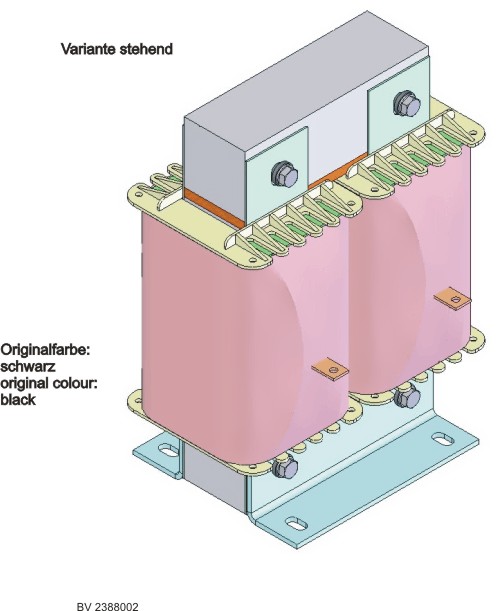

single-phase line reactor UI

single-phase line reactors with soft magnetic lamination cores for power application to
DIN EN61558 and VDE 0570.
datasheet as PDF-File

applications

line reactor, commutation reactor, smoothing reactor, PFC reactor

description

reactors for single-phase loads and electronic appliances with following advantages:

use as a smoothing reactor, commutation reactor in DC circuits

• low ripple factor
• attenuation of current harmonics
• bridging of line failures
• limiting of peak current

use as a line reactor

• attenuation of current harmonics
• limiting of starting current
• realization of short-circuit voltage of 4% to line

use as a PFC reactor

• reduction of harmonics below the limits specified by EN 61000-3-2
• The dimension of the choke is determined from the Energy E = 0,5 L x I². At forced cooling there is less dimension possible.
• If there is only a bit of overheating allowed, the dimensions will have to be larger.

table

type type size energy 0,5 x L x I² mWs dimensions in mm numbers of pins mounting holes copper weight total weight b l h s f1 f2 f3 f DUO UI 75/41,5 810 120 125 150 88 105 100 102 5,8 9 1,0 kg 3,6 kg DUO UI 90/31,5 900 120 150 180 78 95 120 102 5,8 9 1,55 kg 4,5 kg DUO UI 90/51,5 1600 120 150 180 98 115 120 102 5,8 9 2,10 kg 6,8 kg DUO UI 102/57 1800 144 170 200 109 127 136 126 5,8 9 2,55 kg 9,2 kg DUO UI 114/40 2500 144 190 225 92 110 152 126 5,8 9 2,70 kg 8,6 kg DUO UI 114/64 2700 144 190 225 116 134 152 126 5,8 9 3,50 kg 12,9 kg DUO UI 120/51 2700 166 200 235 109 130 160 146 7 13 4,5 kg 12,8 kg DUO UI 120/61 3500 166 200 235 119 140 160 146 7 13 4,7 kg 14,6 kg DUO UI 120/71 5000 166 200 235 129 150 160 146 7 13 5,20 kg 16,7 kg DUO UI 132/46 6200 166 220 260 106 139 176 146 7 13 5,20 kg 14,4 kg DUO UI 132/60 7000 166 220 260 120 144 176 146 7 13 5,50 kg 17,4 kg DUO UI 132/72 7500 166 220 260 132 156 176 146 7 13 5,80 kg 20,0 kg DUO UI 150/52 7500 200 250 295 118 144 200 174 7 13 7,30 kg 20,7 kg DUO UI 150/65 11000 200 250 295 131 157 200 174 7 13 8,90 kg 25,7 kg DUO UI 150/77 12000 200 250 295 143 169 200 174 7 13 9,10 kg 28,9 kg DUO UI 150/92 13000 200 250 295 158 184 200 174 7 13 9,30 kg 32,7 kg DUO UI 150/103 13500 200 250 295 169 195 200 174 7 13 9,80 kg 36,0 kg DUO UI 168/75 13000 225 280 330 147 169 224 192 7 13 11,4 kg 35,4 kg DUO UI 168/92 14000 225 280 330 164 186 224 192 7 13 12,6 kg 42,0 kg DUO UI 180/63 15000 240 300 350 145 168 240 204 9 13 14,0 kg 37,6 kg DUO UI 180/78 16000 240 300 350 160 182 240 204 9 13 14,7 kg 43,6 kg DUO UI 180/93 17000 240 300 350 175 197 240 204 9 13 16,2 kg 50,6 kg DUO UI 210/63 20000 280 350 410 154 176 280 234 9 13 25,6 kg 58,0 kg DUO UI 210/73 22000 280 350 410 164 186 280 234 9 13 27,3 kg 71,8 kg DUO UI 210/88 23000 280 350 410 179 201 280 234 9 13 28,5 kg 73,0 kg DUO UI 210/103 25000 280 350 410 194 218 280 234 9 13 35,4 kg 87,0 kg DUO UI 210/133 30000 280 350 410 224 247 280 234 9 13 38,2 kg  105,0kg DUO UI 240/110 56000 320 400 480 223 238 320 264 12 18 44,0 kg 116,0kg DUO UI 240/140 80000 320 400 480 253 268 320 264 12 18 46,5 kg 140,0kg DUO UI 360/150 120000 492 360 - 655 - 255 310 11,0 - 110,0 kg 310,0 kg dimensions l and f1 without gap they change with the thickness of the gap smaller chokes also in PCB-version possible echnical changes and optimization reserved 04/2008
